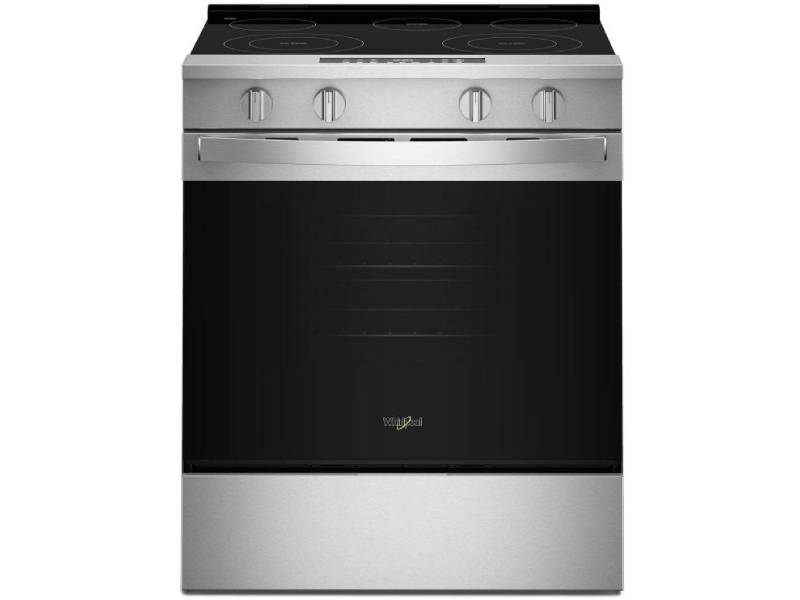

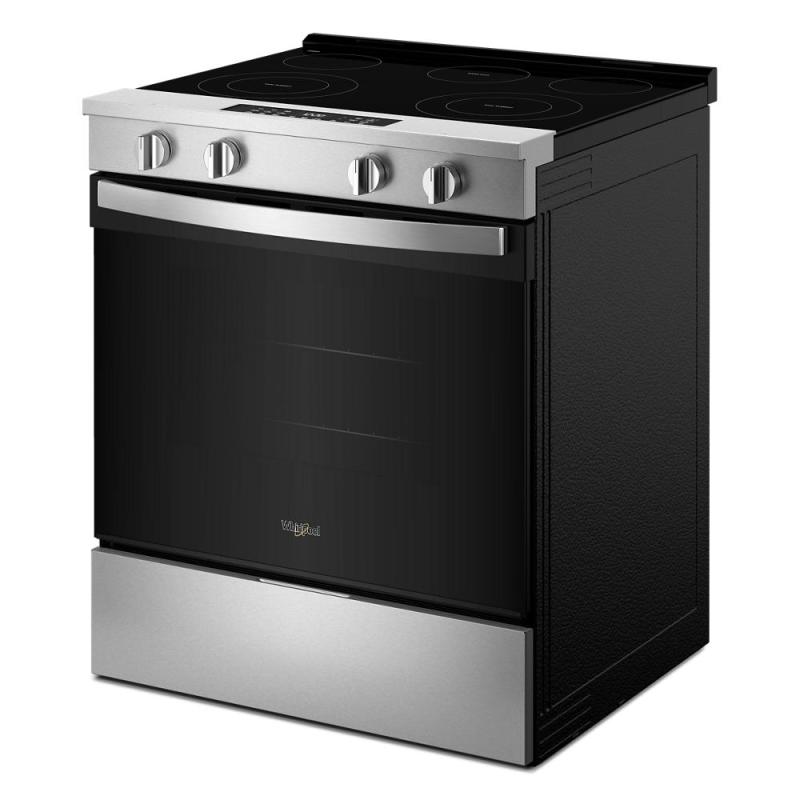

30" Whirlpool Electric Smart Range with Air Cooking Technology and Steam Clean - YWSES4530TZ

Top Features
Air Cooking technology
Experience the difference with the dynamic air flow and intense heat of Air Fry and Air Baking
Cooking Modes
Take your favourite meals from fresh, fridge or freezer to fabulous with No Preheat Air Fry, Air Baking, No Preheat Mode, Bake, Slow Cook, Broil, and Keep Warm Cooking Modes.
No Preheat Air Fry
Save time* with No Preheat Air Fry. Get the right heat at the right time with our most advanced Air Fry mode. Get fast, crispy results on chicken wings and mozzarella sticks without the guilt. *Compared to YWFE550S0LZ
Additional Features
2 FlexHeat™ Dual Radiant Elements
Customize your element size for large or small cookware and boil 40% faster* with two FlexHeat™ Dual Radiant Elements, designed with a 6" inner ring and 9" expandable outer ring. *When comparing the 9" element to the standard 6" element on the same unit.
Steam Clean
Use the Steam Clean setting to quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle and wipe away.
Air Baking
Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consistent heat throughout the oven. Get golden results on breads, pastries and more.
Air Roast
Seal in flavors and juices for meat and poultry with Air Roast. Our high-speed fan drives air flow to optimize heat through longer cook times. Enjoy the full flavor of hearty dishes like pot roast and whole chicken.
Slow Cook
Heat up all day dishes with Slow Cook. Our high speed fan optimizes air flow to maintain a low, even temperature for longer cook times to thoroughly heat up your food. Tackle your to-do list while soups, pastas and roasts come to temp without the worry.
Broil
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
No Preheat Mode
Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.
Keep Warm Setting
Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.

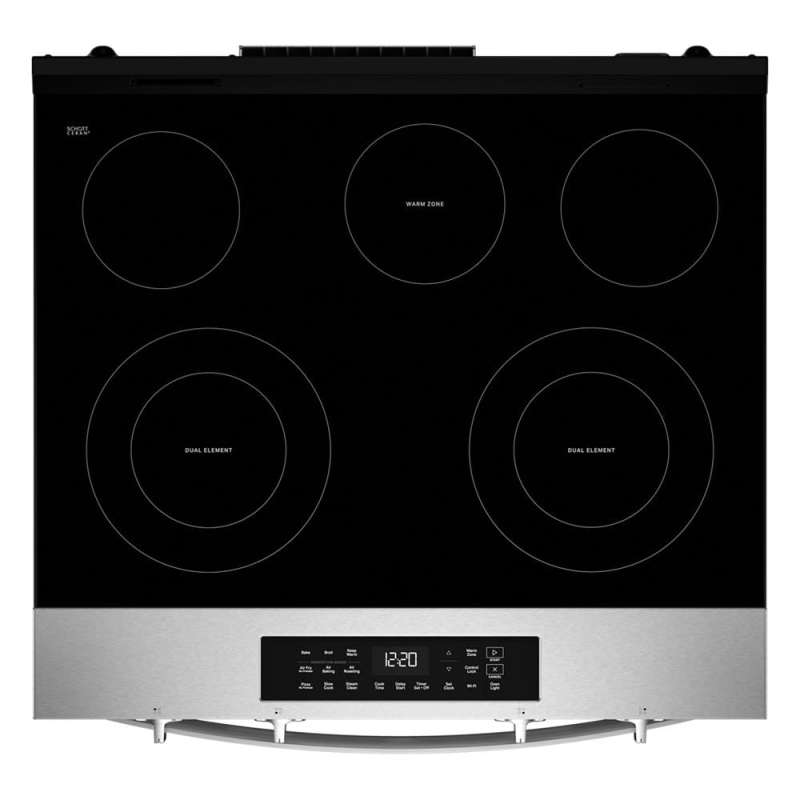

Edge-to-Edge Glass Cooktop
Expand your cook space with the exceptional style and flexibility of an Edge-to-Edge Cooktop. Move pots and pans between heating elements to sauté, boil and simmer with style.
Warm Zone
Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.
Smart Range
When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.* *Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
Smart Feature Updates
Stay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with updates through the Whirlpool app. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
ENERGY STAR® Certified
ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.

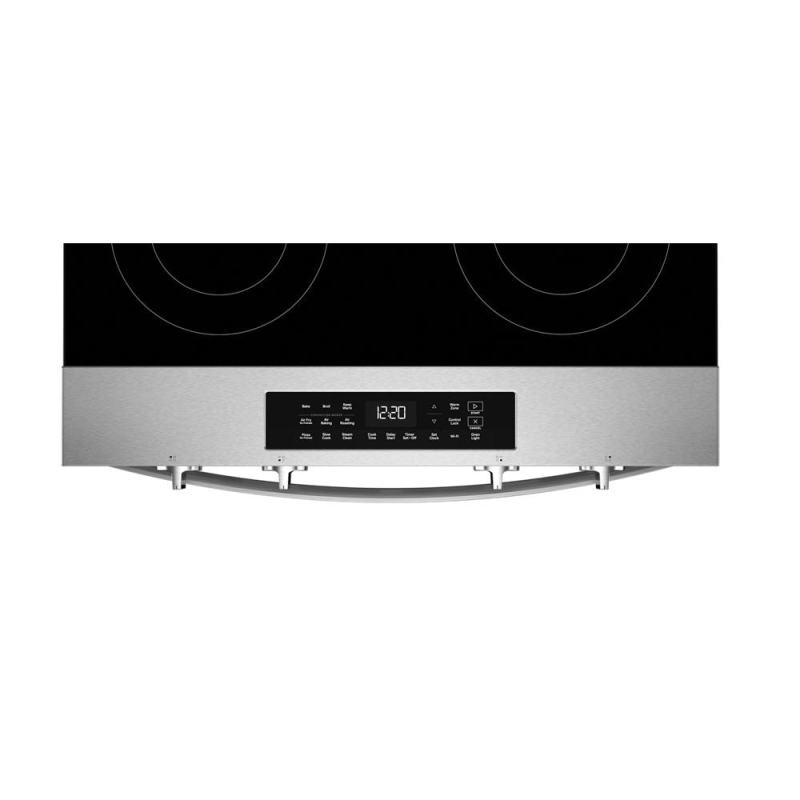

Front Control Design
Easily upgrade your kitchen with the features you want and a premium look that brings controls to the front of the range for easy reach with Front Control Design.
Storage Drawer
A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.
Sabbath Mode
Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
Fingerprint Resistant Stainless Steel
Available in a stainless finish that’s easy to clean and resists fingerprints and smudges.

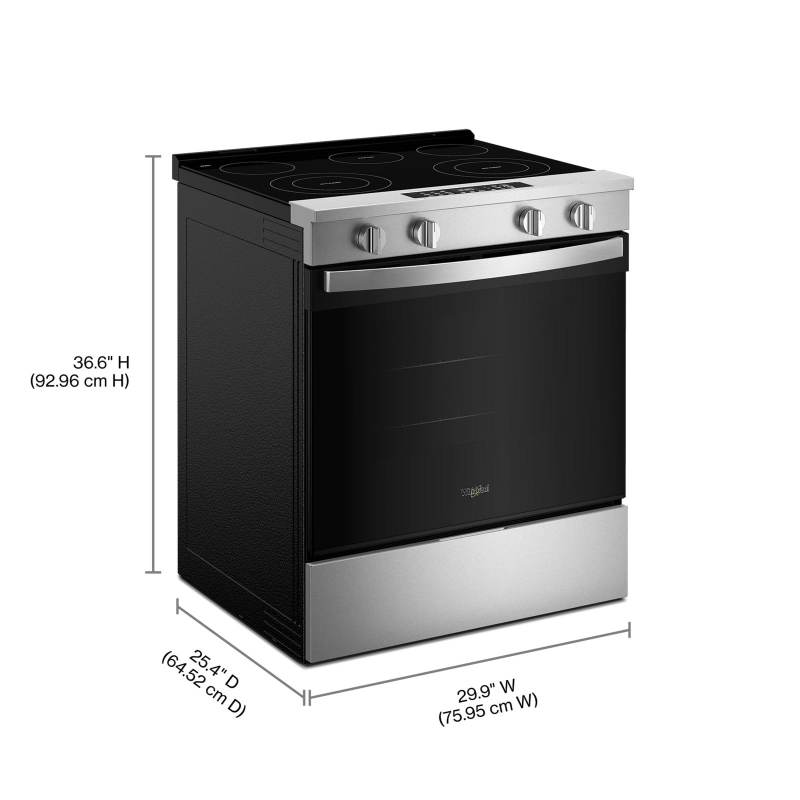

| Dimensions | |
|---|---|
| Depth | 25.4 " |
| Width | 29.9 " |
| Height | 36.6 " |
| Carton Depth | 31.0 " |
| Carton Height | 43.0 " |
| Carton Width | 32.0 " |
| Gross Weight | 185.0 lbs |
| Depth Closed Excluding Handles | 27.4 " |
| Depth Closed Including Handles | 29.1 " |
| Depth With Door Open 90 Degree | 47.7 " |
| Maximum Height | 38.1 " |
| Minimum Height | 36.6 " |
| Capacity FT3 (cubic feet) | 5.3 |
| Cutout Depth | 24.0 " |
| Cutout Height | 36.0 " |
| Cutout Width | 30.0 " |
| Net Weight | 169 lbs |
| Details | |
| Broiler Location | Top Center |
| Oven Cleaning Type | Steam Clean |

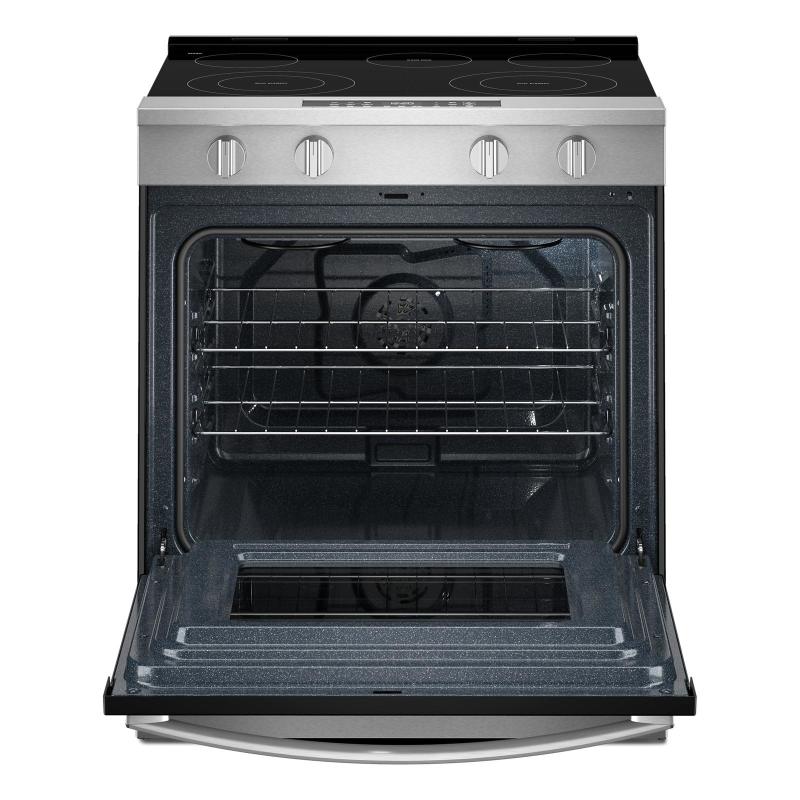

| Number Of Rack Guides | 5 |
| Number Of Oven Racks | 2 |
| Number Of Oven Lights | 1 |
| Hidden Bake Element | Hidden |
| Cooktop Surface Material | Glass |
| Convection Functions | No |
| Convection Element Type | Fan |
| Oven Control Knob Type | N/A |
| Broiler Element Power | 3400W |
| Bake Element Power | 2400W |
| Rack Guide Type | Embossed |
| Oven Rack Type | 2 Standard |
| Oven Light Type | Halogen |
| Oven Light Switch Location | Oven Control |
| Oven Interior Width In Inches | 24.2 |
| Oven Interior Depth In Inches | 19.0 |
| Oven Control Type | Tap Touch |
| Oven Control Location | Front Control |
| Description | |
| Range Type | Slide-in |
| Size In | 30 |
| Cooktop Details | |
| Right Rear Element Burner Type | Standard |
| Right Rear Element Burner Size | 6in. |
| Right Rear Element Burner Power | 1200W |
| Right Front Element Burner Type | Dual |
| Right Front Element Burner Size | 9in./6in. |
| Right Front Element Burner Power | 3000W |
| Cooktop Element Style | Ceran |
| Number Of Cooking Element Burners | 5 |
| Left Rear Element Burner Type | Standard |
| Left Rear Element Burner Size | 6in. |
| Left Rear Element Burner Power | 1200W |
| Left Front Element Burner Type | Dual |
| Left Front Element Burner Size | 9in./6in. |
| Left Front Element Burner Power | 3000W |
| Cooktop Control Type | Knobs |
| Cooktop Control Location | Front |
| Cooktop Configuration | All Burners |
| Center Rear Element Burner Size | 6in. |
| Center Rear Element Burner Type | Warming |
| Center Rear Element Burner Power | 100W |
| Features | |
| Power Outage Compatible | Yes |
| Hot Surface Indicator Light | Yes |
| Heating Element On Indicator Light | Yes |
| Griddle | No |
| Automatic Convection Conversion Temperature Adjust | No |
| Exterior | |
| Drawer Type | Storage Drawer |
| Door Removable | Yes |
| Energy | |
| Annual Energy Usage Kwh | 540 |
| Specifications | |
| Optional Accessories | 4396096RB, W11692811 |
| Country Of Origin | USA |
| Dishwasher Safe | No |
| Configuration | |
| Oven Configuration | Single Oven |
| Range Configuration | Slide-In |
| Configuration and Overview | |
| Fuel Type | Electric |
| Certifications | |
| Star K Certified | Star K Certified |
| CUL | Yes |
| Energy Rating Kwh Year | 540 |
| UL | Yes |
| ADA Compliant | Yes |
| ELECTRICAL | |
| Watts | 12000 |
| Hz | 60 |
| Volts | 208 |
| Power Cord Included | Yes |
| Amps | 40 |
| CONTROLS | |
| Control Type | Knobs |
| Knob Type | Plastic |
| Compatibility | |
| Works With | Amazon Alexa Android Google Assistant Nest iOS |
| Connectivity | App Bluetooth Remote Access Voice Controlled WiFi |
