Features

Complete Clean with 5 Level Wash System

Get a complete clean with the 5 level wash system, featuring an upper spray nozzle, middle spray arm, and lower spray arm.

Energy Saver Dry Option

Reduce energy use with the no heat dry option.

Fits up to 14 place settings

Cleans 14 place settings in one cycle.

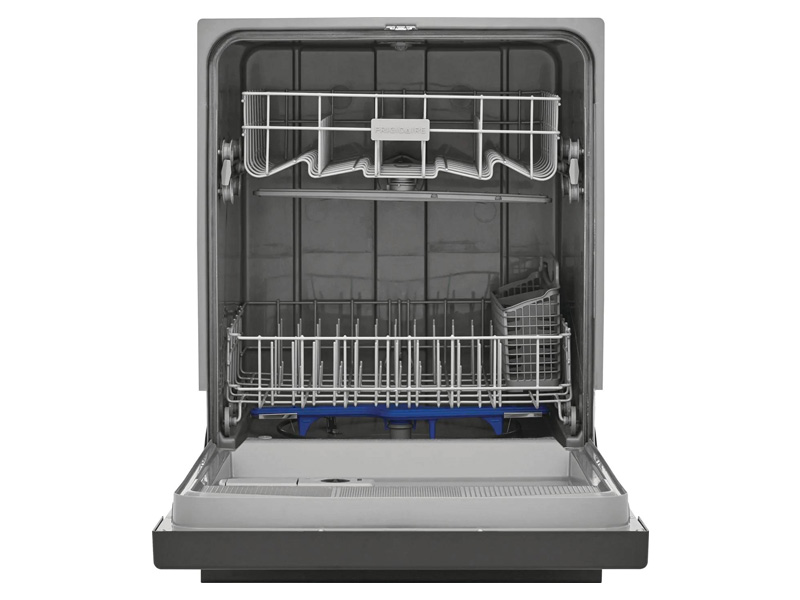

Lower Rack
Minimum Height Clearance 11
Maximum Height Clearance 13
Number of Silverware Basket 1
Rack Type Basic
Rack Coating PVC
Dimensions and Volume
Minimum Height 33 1/2
Maximum Height 35
Width 24
Depth 25
Depth With Door Open 49 1/4
Installation
Connection Location Right Bottom
Water Inlet Location Bottom Left
Exterior
Door Latch Squeeze
Door Type Standard
Dishwasher Options
Drying System Static Vent
Heated Dry Yes
Start/Cancel Yes
DISHWASHER
Detergent Dispenser Yes
Filter Material Stainless Steel
Filter Trap Removable
Filtered Water 100 %
Hard Food Disposer or Filtration Yes
Place Setting Capacity 14
Rinse Aid Dispenser Yes
Smart Soil Sensor No
Spray Arm Bi-Beam
Tub Design Tall Tub
Tub Material Plastic
Wash Levels 5
Wash System Direct Feed
Water Pressure 120 psi
Water Usage 5 Gallons
Dishwasher Cycles
Heavy Yes
Normal Yes
Number of Cycles 2
Upper Rack Yes
UPPER RACK
Minimum Height Clearance 8
General Specifications
Annual Energy 280 kWh
Product Weight 78.85 lbs
Prop 65 Label Yes
Sound Level 62 dBA
Warranty - Labor 1 Year
Warranty - Parts 1 Year

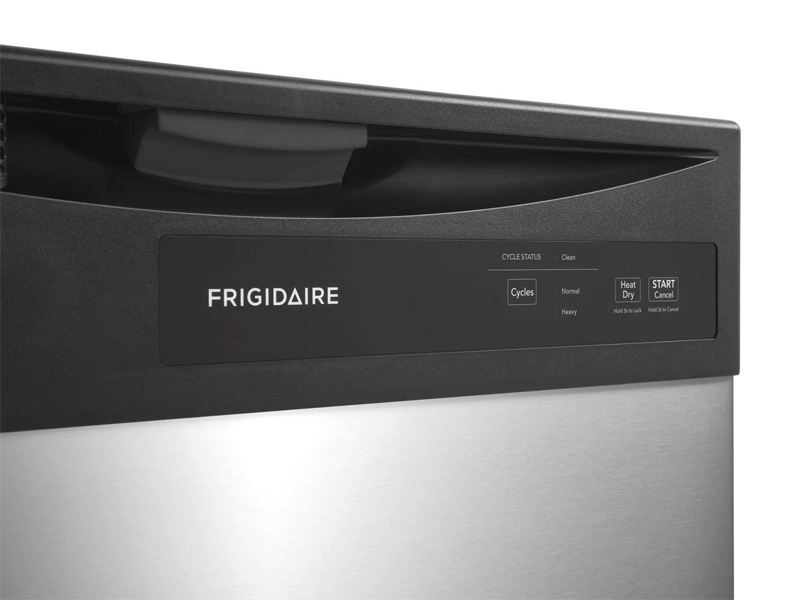

CONTROLS
Digital Display No
External Control Lock Yes
Rinse Aid Indicator Yes
ELECTRICAL SPECIFICATIONS
Voltage Rating 120 V
Certifications and Approvals
ADA Compliant No
UL Listed Yes
Meets ASSE 1006 Requirements Yes
NSF Certified No
CEE Tier Tier 1
Energy Star No
