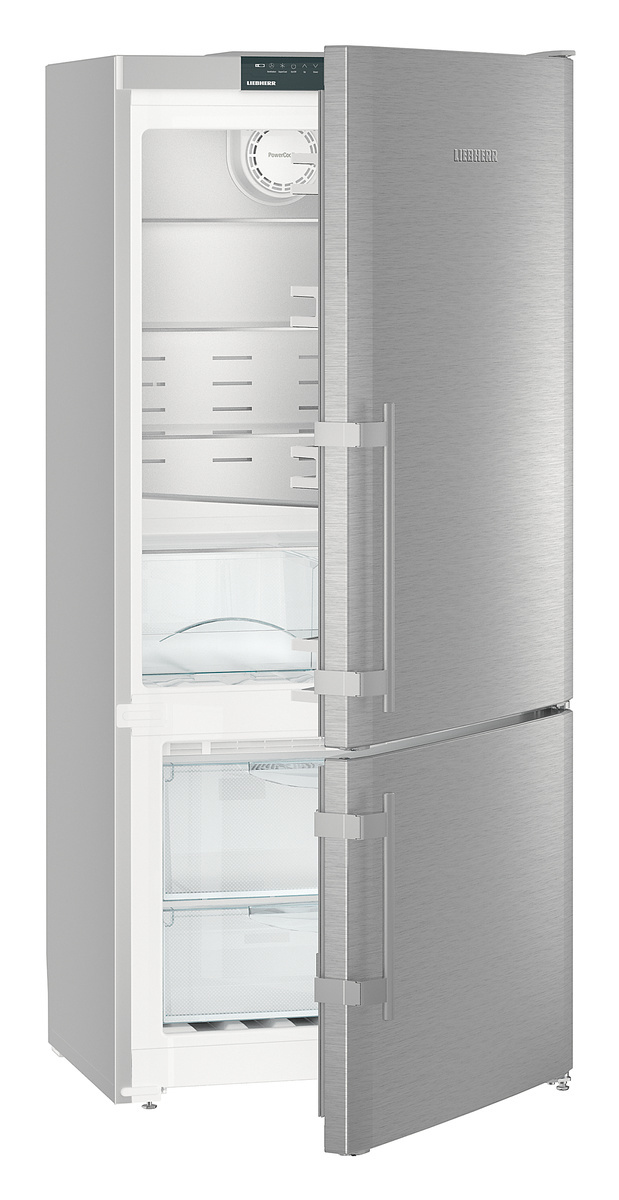

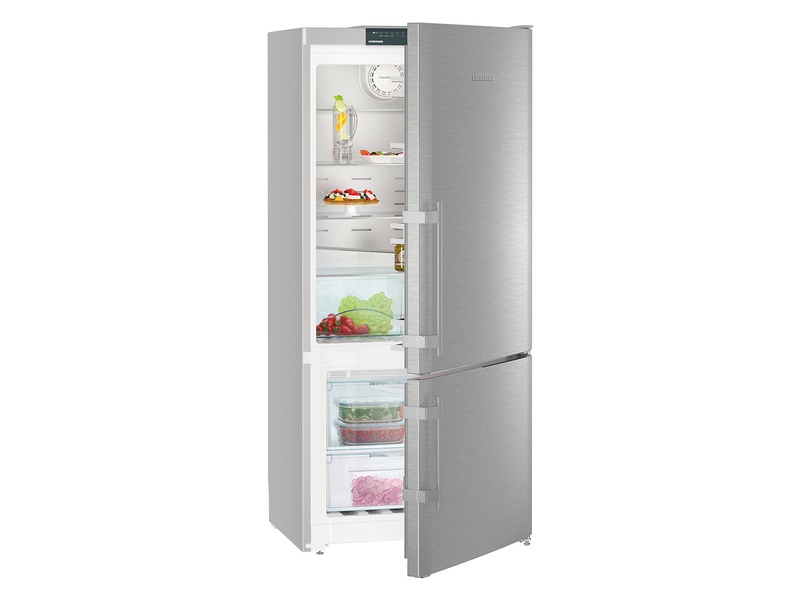

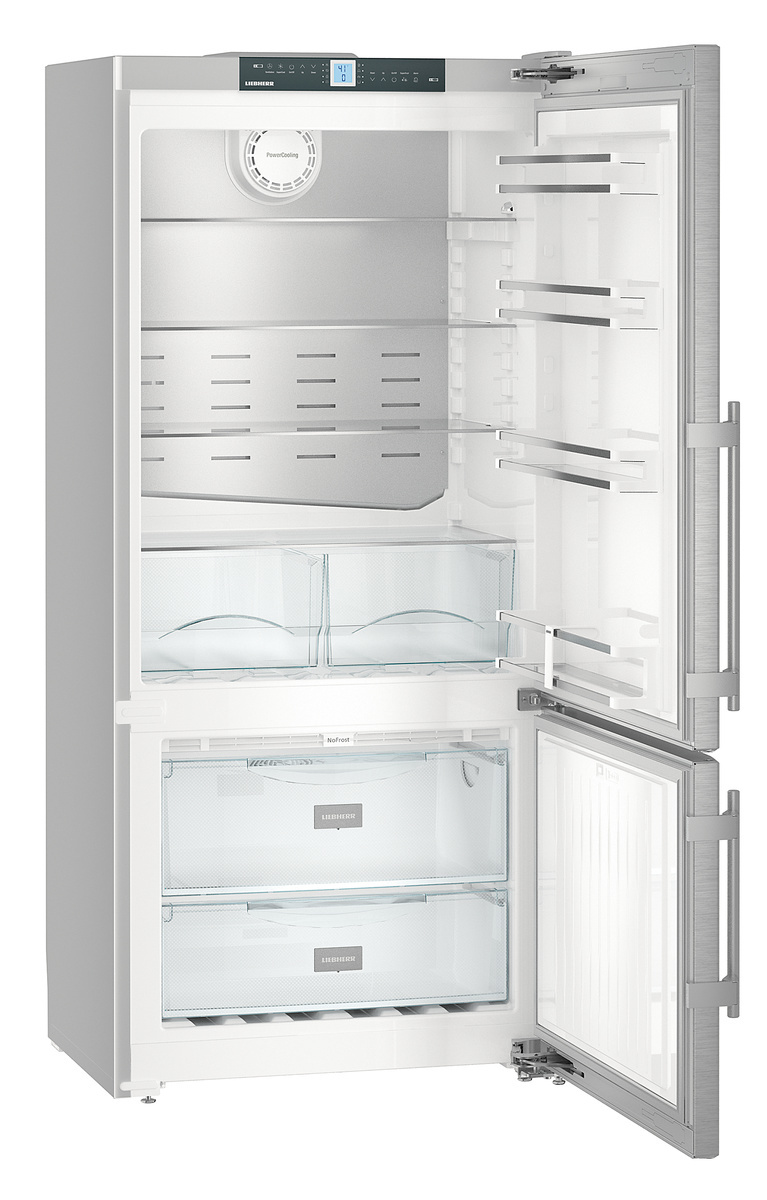

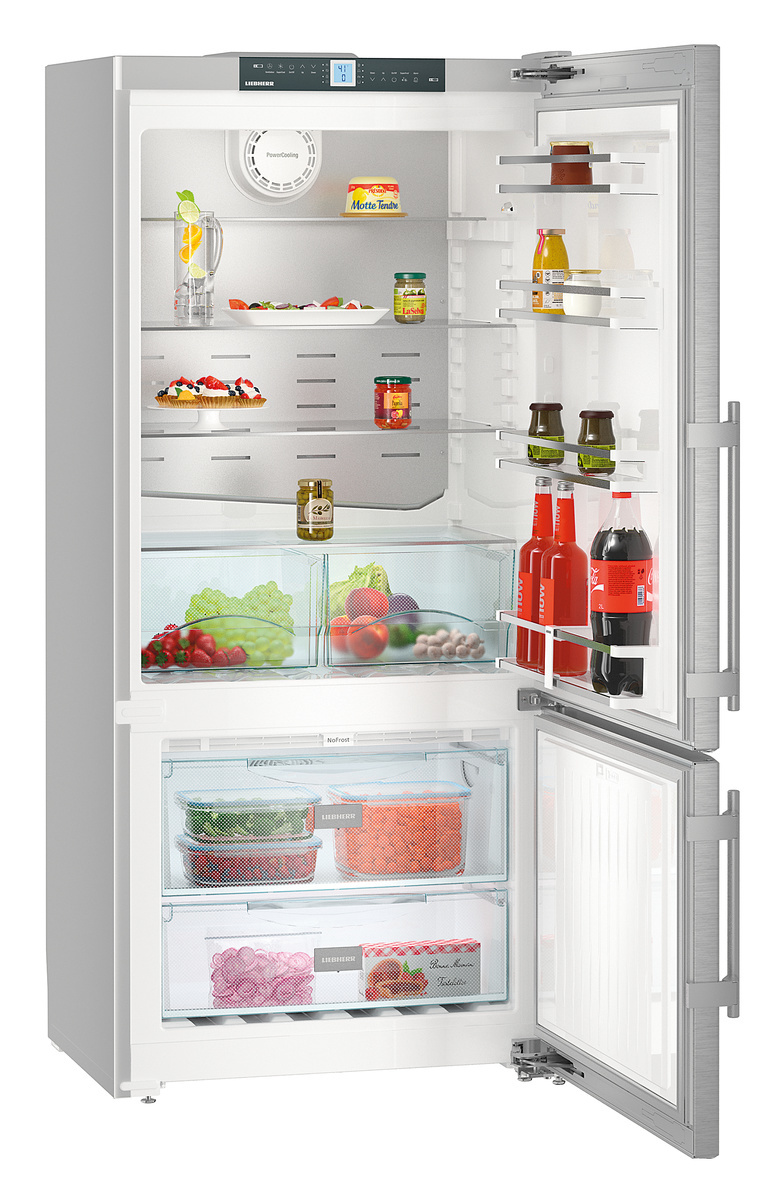

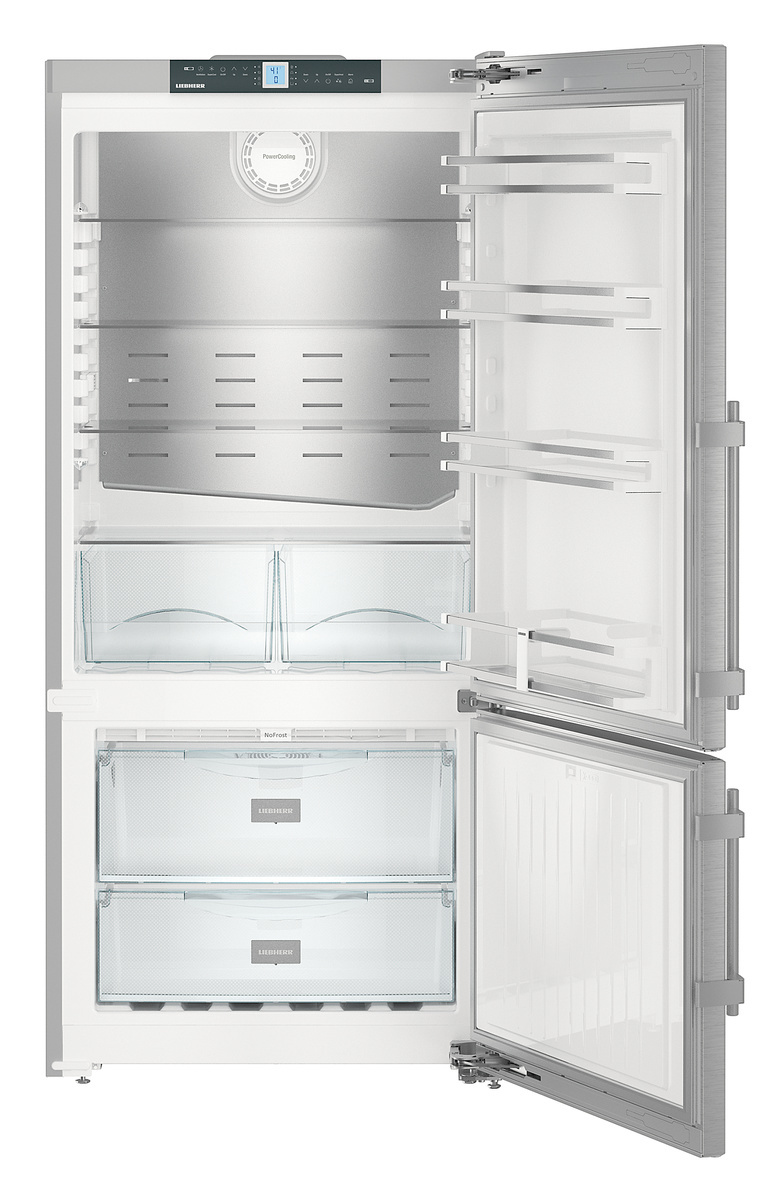

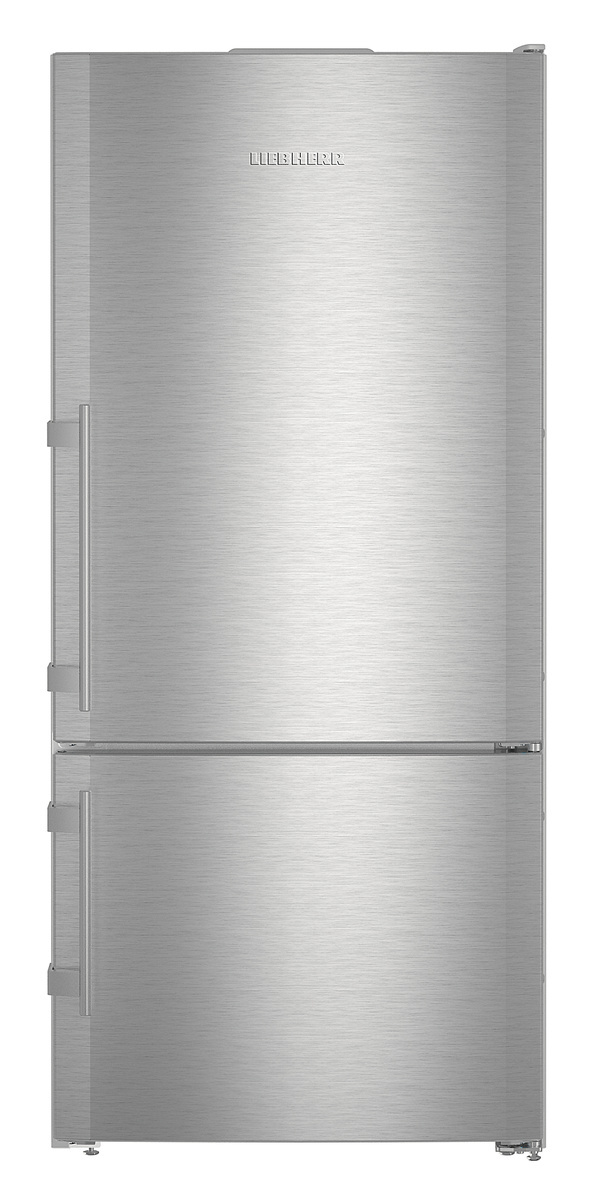

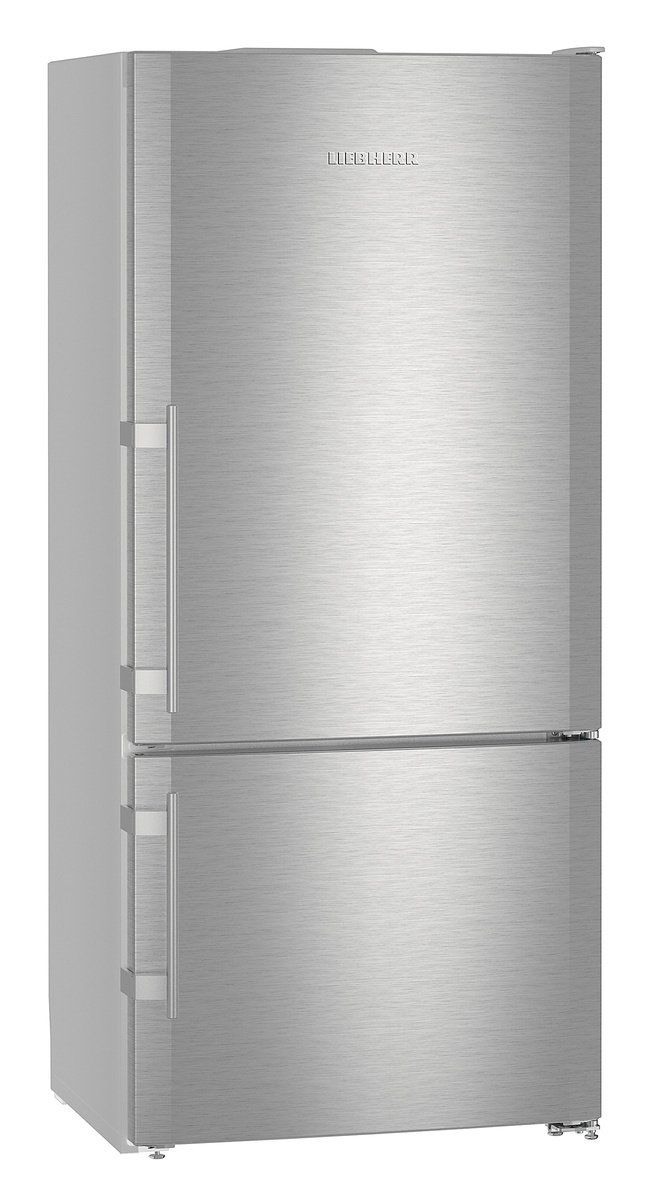

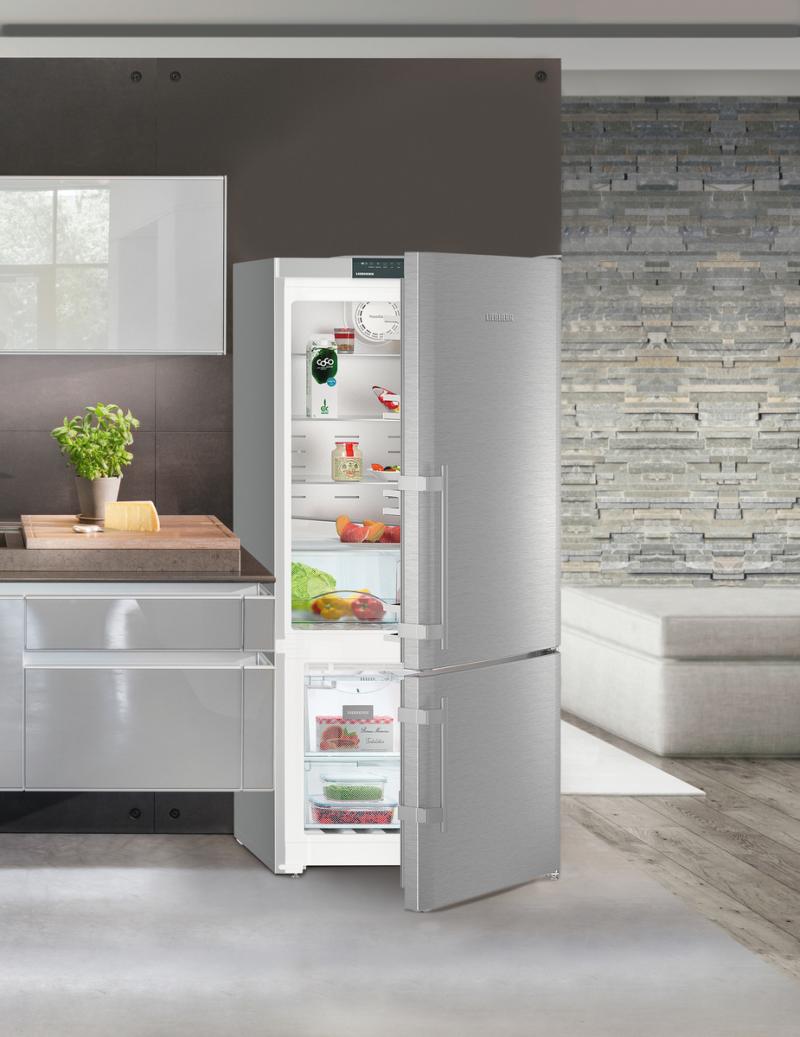

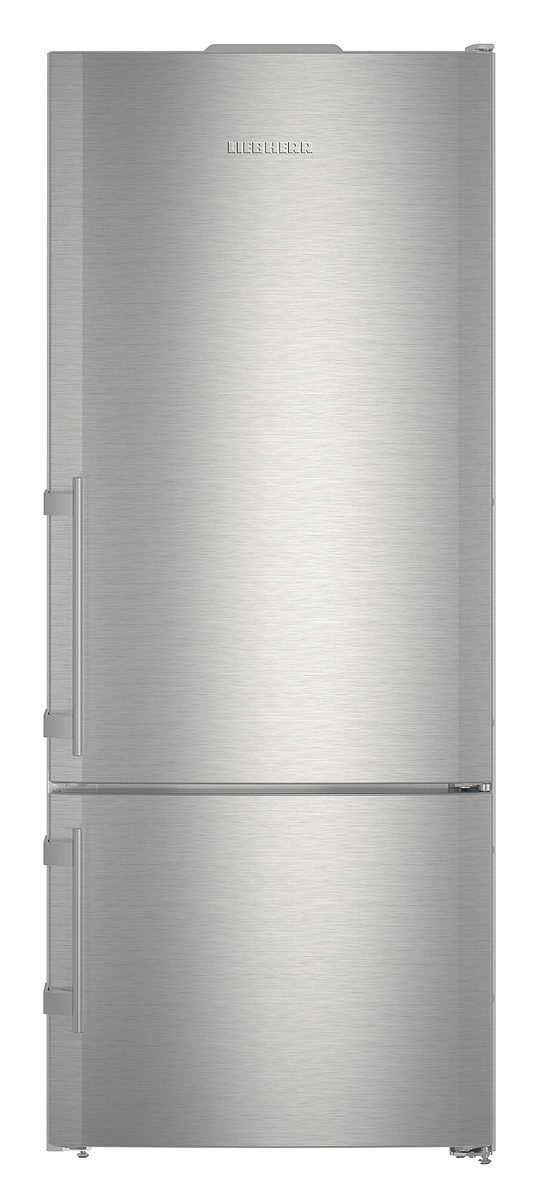

Liebherr Refrigerator-Freezer Combination - CS 1401R-IM


German engineering
Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.

NoFrost
Liebherr’s NoFrost appliances provide expert refrigeration technology to ensure long-term freshness. The food is frozen with chilled recirculating air, and any humidity is expelled. As a result, the freezer is always free of ice, and food no longer frosts over. NoFrost convenience makes defrosting a thing of the past.

Energy Star
Liebherr refrigerators help to produce less energy waste and greenhouse gas emissions with the aim of having the least damaging effect on the environment and offering solutions that help consumers conserve energy.

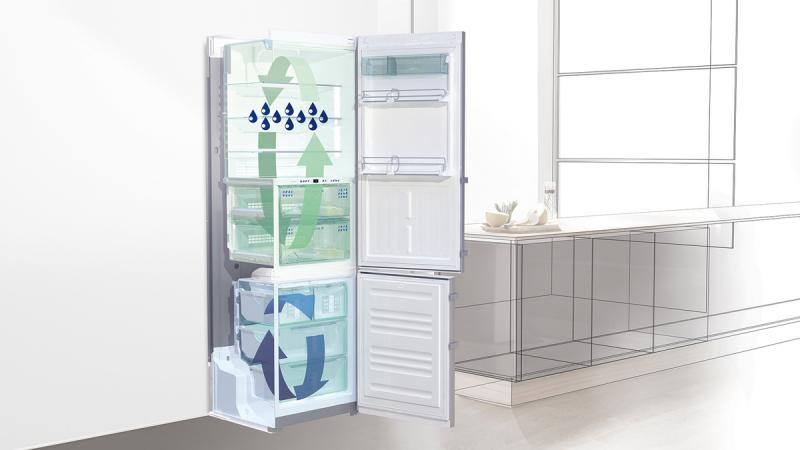

DuoCooling
DuoCooling uses two completely separate refrigeration circuits to ensure no air is exchanged between the refrigerator and freezer compartments. The food neither dries out nor is odor transferred. This means throwing less away, shopping less often, but saving more and greater enjoyment.

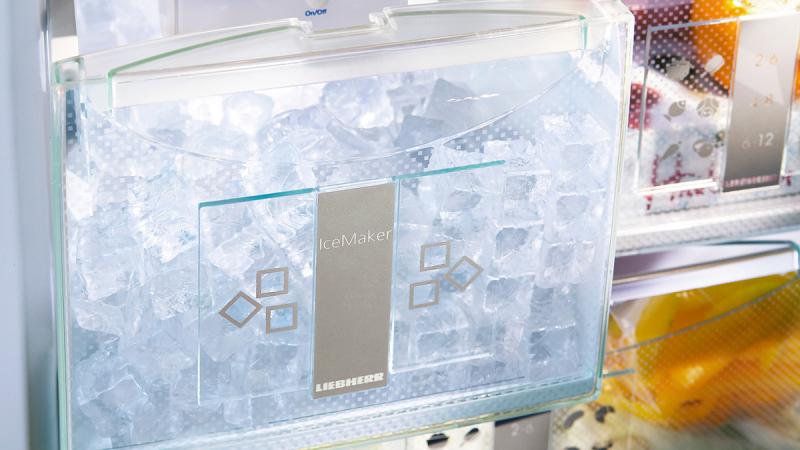

IceMaker with fixed water connection
The connected IceMaker automatically keeps you topped up with the finest quality ice cubes so that you are prepared for every occasion.

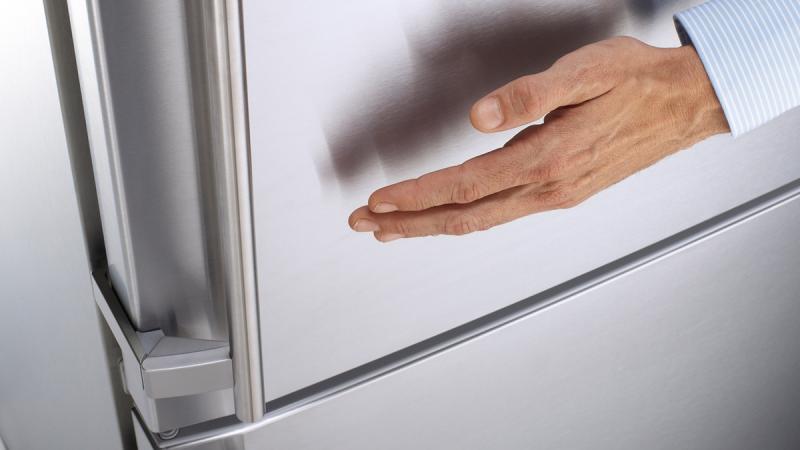

SmartSteel
SmartSteel significantly reduces the visibility of finger marks and is very easy to clean.

Automatic SuperFrost function
The automatic SuperFrost function makes freezing simple and saves energy. It quickly reduces the temperature to -26°F and thus creates the cold air required to preserve vital vitamins. As soon as the food is completely frozen, the automatic SuperFrost function switches back to normal mode after max. 65 hours, and thus assists in saving electricity.

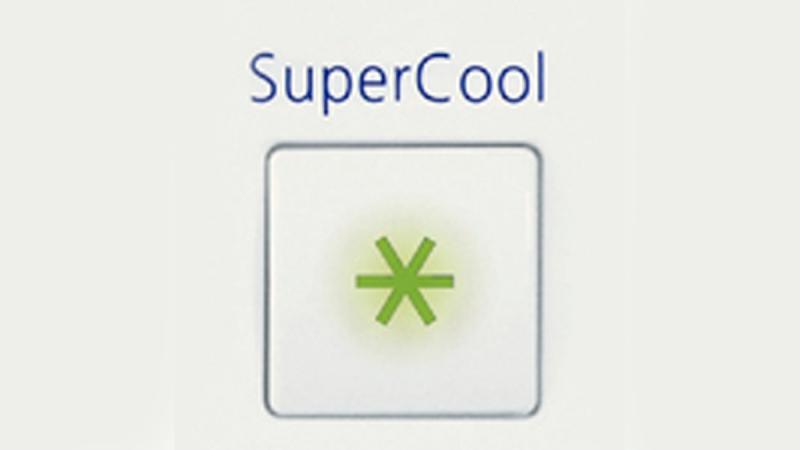

SuperCool
The automatic SuperCool function lowers the refrigerator temperature down to as far as 36°F for as long as 12 hours - ideal for rapidly cooling freshly stored food.

Door alarm
The audible door alarm alerts the user if the door has been open for longer than 60 seconds for safe protection of the food.

Child lock
The child lock is programmed so as to prevent the appliance being inadvertently switched off. A symbol in the MagicEye indicates when the child lock is switched on.
Temperature alarm
The temperature alarm immediately notifies visually and audibly in case of inadvertent temperature deviations, for example when a door is opened or after a power failure.

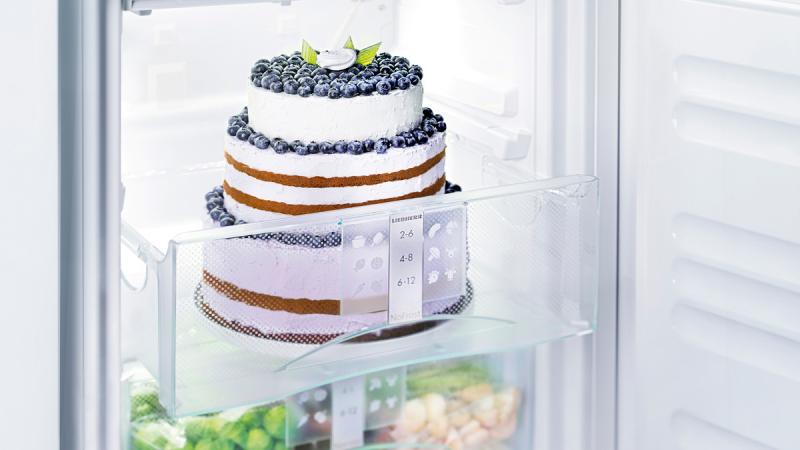

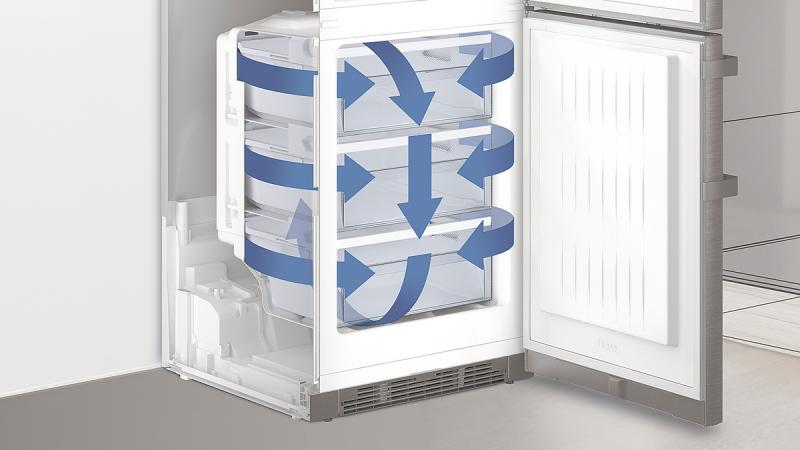

FrostSafe
With the FrostSafe, the extra-high and removable drawers are closed all round. This means that the cold cannot dissipate so quickly when the appliance is opened. The transparent front of the compartments guarantees an optimum overview of the frozen items.

VarioSpace
All freezers with NoFrost and SmartFrost feature drawers and intermediate glass shelves underneath them, which can be conveniently removed. This results in VarioSpace – the practical system for extra storage space – so that space can be created quickly even for larger frozen food items.

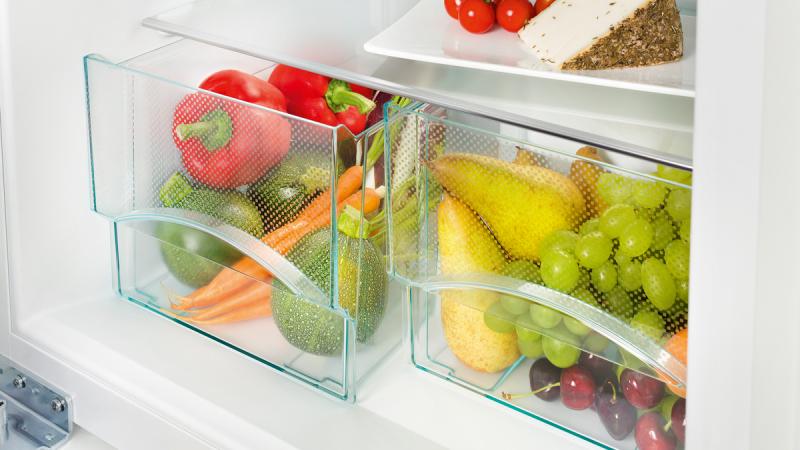

Transparent vegetable bins
Transparent vegetable bins provide plenty of space for the organized storage of fruit and vegetables. In addition, they are easy to clean.

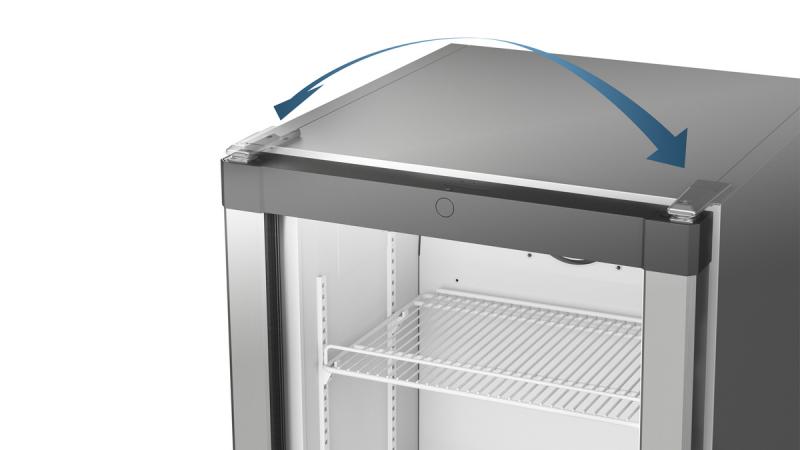

Reversible door hinges
It is possible to change the door hinge on the appliance. The reversible door hinges permit optimum use of the appliance wherever it is located.
| General product information | |
|---|---|
| Model type | Refrigerator-Freezer Combination |
| GTIN | 9005382211458 |
| Series | Comfort |
| Output and consumption | |
| Energy consumption in 24h | 1.273 |
| Energy consumption per year | 465 |
| Connection rating | 2.0 A 138 W |
| Voltage | 115 V ~ |
| Frequency | 60 Hz |
| Control and functions | |
| Number of temperature zones | 2 |
| Position of control unit | behind the door |
| Number of regulated refrigeration circuits | 2 |
| Temperature display | Fridge & freezing compartment |
| Front frame heater | Refrigerator and freezer compartment |
| FrostControl | Yes |
| BottleTimer | - |
| Fan | Yes |
| Control unit | Touch |
| Malfunction: Warning signal | optical and acoustical |
| Child proofing | Yes |
| Refrigerator compartment | |
| Adjustable temperature range, refrigerator compartment | +2 °C to +7 °C |
| Defrosting method | automatic |
| Interior light, fridge compartment | LED ceiling lighting |
| Number of storage shelves, refrigerator compartment | 4 |
| of which height-adjustable | 3 |
| Of which separable | 1 |
| Bottle rack | 1 |
| Number of can racks | 3 |
| Storage rack | Bottle and can rack |
| SoftSystem | Yes |
| Freezer compartment | |
| Temperature range freezer compartment | -14 °C to -27 °C |
| Freezer compartment position | Bottom |
| Defrosting method | automatic |
| Freezing capacity in 24 hrs | 17.6 |
| No. of drawers in freezer compartment | 3 |
| FrostSafe | Drawers closed on all sides with transparent front |
| Interior light, freezer compartment | - |
| VarioSpace | Yes |
| Ice cube production | 3.1 |
| Ice cube storage | 2.5 |
| Ice cube storage | 5.5 |
| Ice cube tray | - |
| Star-rating | 4 |
| Water inlet | Fixed water connection |
| Design and materials | |
| Dry rear panel | Yes |
| Material dry rear wall | stainless steel |
| Material door bins | Glass with plastic trim |
| Storage shelf material, fridge compartment | Glass |
| Cabinet Material | Stainless steel door with SmartSteel |
| Material of adjustable shelves in the freezer compartment | Glass |
| Door design | SwingLine design |
| Cabinet Material | silver |
| Side wall material | steel |
| Handle | Lever handle with integrated opening mechanism |
| Set-up and installation | |
| Door hinges | Left |
| Height-adjustable feet | 4 |
| Transport handles | Rear |
| Transport castors at back | Yes |
| Plug type | USA |
| Connector cable (length) | 2,600 |
| Transport handles at back | Yes |
| Specifications | |
| Net capacity, total | 12.8 |
| Refrigerator compartment | 9.8 |
| of which BioFresh | 0.0 |
| Freezer compartment | 3.0 |
| Product dimensions (H/W/D) | 66 3/8 | 29 7/16 | 24 13/16 |
| Height / Width / Depth (with packaging) | 69 11/16 | 31 5/8 | 28 |
| Weight (without packaging) | 211.6 |
| Weight (with packaging) | 233.7 |
| Exterior dimensions: height/width/depth (with packaging) | 1,770.0 / 802.0 / 711.0 |
