24" Jenn-Air Gas Cooktop - JGCK424PS
Literature
24" Jenn-Air Gas Cooktop - JGCK424PS
| Dimensions | |
|---|---|
| Depth | 20.06 " |
| Width | 24.5 " |
| Height | 5.19 " |
| Net Weight | 37.4 lbs |
| Cutout Height | 3.33 " |
| Carton Depth Inch | 28.38 " |
| Carton Height Inch | 8.25 " |
| Carton Width Inch | 23.63 " |
| Cooktop Details | |
| Right Front Element Burner Type | Standard |
| Left Front Element Burner Size | 4.5in. |
| Left Rear Element Burner Power | 6300BTU |
| Left Rear Element Burner Size | 3in. |
| Right Front Element Burner Power | 4000BTU |
| Right Front Element Burner Size | 2in. |
| Right Rear Element Burner Power | 12000BTU |
| Left Front Element Burner Power | 18000BTU |
| Cooktop Configuration | All Burners |
| Left Rear Element Burner Type | Standard |
| Number Of Cooking Element Burners | 4 |
| Right Rear Element Burner Type | Standard |
| Right Rear Element Burner Size | 4in. |
| Cooktop Element Style | Sealed Burners |
| Left Front Element Burner Type | Dual |

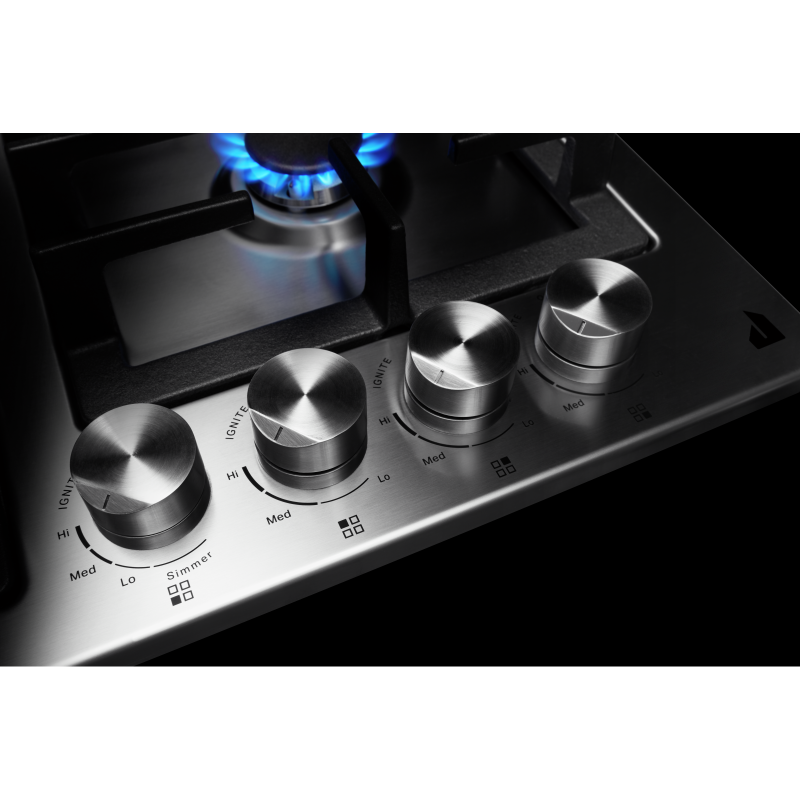

| CONTROLS | |
| Control Type | Manual |
| Control Location | Front |
| Knob Type | Metal |
| Configuration and Overview | |
| Fuel Type | Gas |
| Description | |
| Cooktop Type | Traditional |
| Size In | 24 |
| Combinations With Oven | JJW2424 JJW2427 JJW2430 JJW3430 JJW6024 |
| Features | |
| Automatic Pan Detection | No |
| Digital Display | No |
| Downdraft Vent | No |
| Installs Over Built In Oven | Yes |
| LP Convertible | Yes - Kit Included |
| Power Boost | No |
| Power Outage Compatible | Yes |
| Heating Element On Indicator Light | No |
| Automatic Pan Size Adjustment | No |
| Griddle | N/A |
| Hot Surface Indicator Light | No |
| ELECTRICAL | |
| 208v Compatible | No |
| Volts | 120 |
| Hz | 60 |
| Amps | 15 |
| Power Cord Included | Yes |
| Specifications | |
| Country Of Origin | Mexico |
| Certifications | |
| UL | Yes |
| ADA Compliant | Yes |
