Dry Boost™ Technology

Dry Boost™ Technology outperforms standard heated-dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier when compared to heated dry. Play Video



Third Rack with Removable Silverware Caddy

The versatile Third Rack was redesigned to load more than just silverware with additional space for unique items. Play Video



Deep Clean Silverware Jets

A system of 40 deep-cleaning silverware jets blasts the silverware basket from the bottom up, removing all stuck-on food for sparkling results. Play Video



4 Bottle Wash Jets

Ensure a deep clean for tall items, narrow glasses, jars and more thanks to this dishwasher with bottle jets. 4 powerful jets direct water and detergent inside to effectively wash hard-to-reach areas.

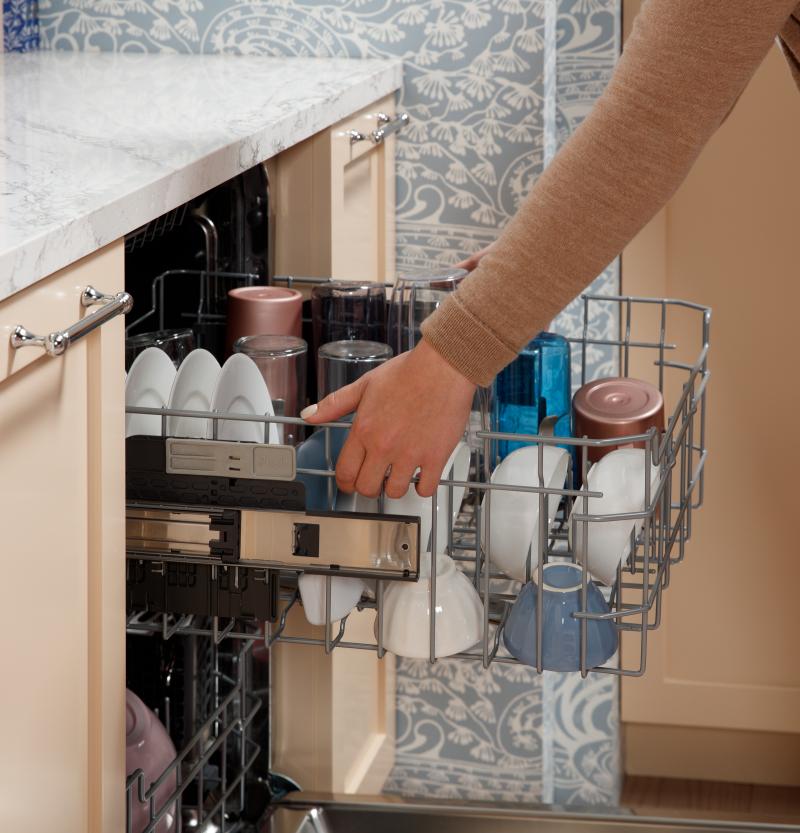

Smooth-Glide Upper Rack

This dishwasher with a smooth-glide rack makes loading and unloading smooth and simple. It easily extends on stainless steel ball bearings, so you can make light work of even the heaviest loads.



Steam and Sani

Save time with a high-temperature cycle that steams and sanitizes. Get a complete wash with no pre-rinsing or soaking necessary and reduce 99.999% of bacteria.



High Wash Performance

'Get a complete wash with no pre-rinse thanks to a variety of wash cycles that provides a powerful clean. No matter how many dishes you load or how dirty they are, rest assured you''ll get spotless results every time.'



Active Flood Protect

This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.



Reliable Performance

Enjoy trusted performance from a trusted brand with this American-made, dependable dishwasher that provides totally clean and dry dishes with every cycle.



Piranha™ Hard Food Disposer

The Piranha™ Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design makes sure wash arms stay unclogged.



45 dBA Dishwasher

Enjoy a peaceful kitchen and a powerful wash with this super-silent, 45 dBA dishwasher.



Extra Large Capacity

Space for 16 place settings and large dishware, making cleanup easy after large gatherings.



Optional WiFi

Monitor this dishwasher with a smartphone and a WiFi adapter (sold separately) to enjoy a smart dishwasher experience. Simply attach the adapter and start using the SmartHQ™ app to control and monitor your unit remotely. You can even reorder detergent.



1-Hour Wash Cycle

Unload spotless plates, glasses, pots and pans without waiting hours for the dishwasher to finish with this one-hour dishwasher cycle.



AutoSense Cycle

This energy-saving dishwasher has an AutoSense Cycle that detects soil level and amount of dishes before automatically adjusting the wash setting for the ultimate clean.


Accessories
Optional 12' Drain HoseOptional hose kit (WD24X10065)
Appearance
Color AppearanceFingerprint Resistant Slate
Control Panel ColorStorm Gray
Door AppearanceFull-length door
Door StyleLong Door with Top Controls
HandleRounded Handle
Handle ColorStainless Steel
InstallationSide or Top Mount Install Brackets Included, Built-Up Floor Capable, Flush Cabinet Installation
Economical / Quiet
Door InsulationInsulation, Mastic
Motor TypeVariable Speed
Outer WrapFull-wrap Blanket, Bitumen
Quiet FeaturesQuiet Water Valve, Sealed Toe Kick, Tub Collar Trim
Quiet Package45 dBA
Features
Additional ProtectionActive Flood Protect

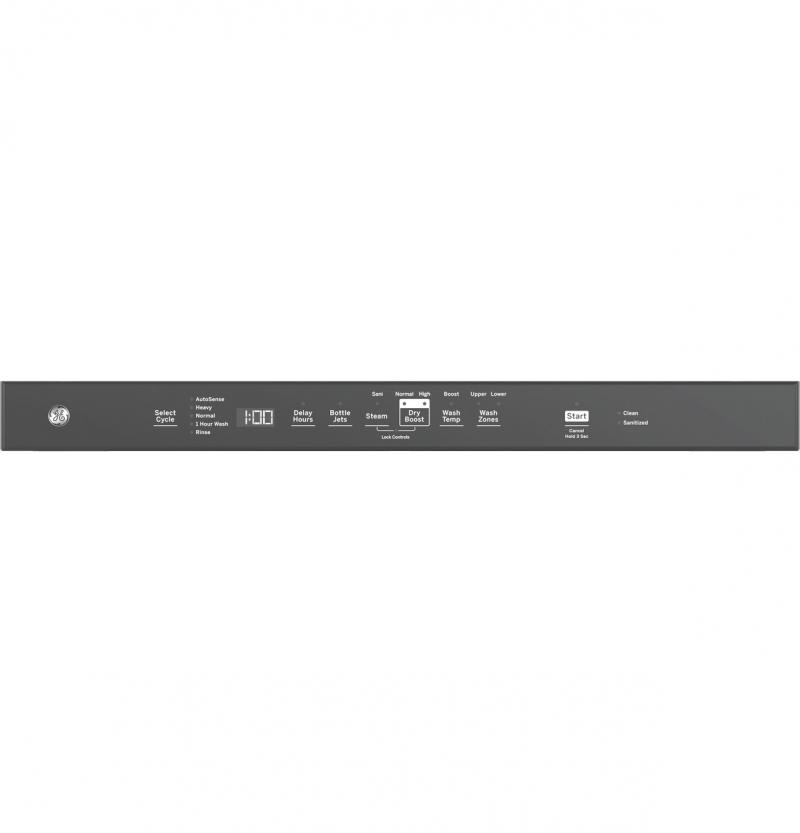

Control TypeTop Controls, 8 Touchpads, Cap Touch Controls
Dishwasher Control Features3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door, 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators, Last Cycle Memory, Audible End-of-Cycle Signal, Control Lock with 1 Light
Dishwasher CyclesAutoSense, Heavy Wash, Normal Wash, 1 Hour Wash, Rinse
Dishwasher Drying FeaturesNormal, High, Off, Dry Boost™
Dishwasher OptionsDelay Start 1-12 Hr., Child Lock, Start/Cancel, Bottle Jets, Steam + Sani (Certified to NSF Standard 184), Dry Boost™ (High), Dry Boost™ (Normal), Wash TempBoost, Wash Zone Upper Only, Wash Zone Lower Only, Sabbath Mode
DispenserRinse Aid with Indicator and Adjustment
Exterior StyleTraditional
LatchPull with Handle
Leveling System4 Leveling Legs
Lower RackBall-Tip Tines
Number of Cycles5
Number of Options11
Number of Place Settings16
OU CertifiedNo
Rack ColorSilver
Rack FeaturesBall-Tipped Tines, Adjustable Upper Rack, 1 Piece Silverware Basket with 3 Cell Covers
Racking MaterialNylon
Racking SystemFull 3rd rack + caddy
Sabbath ModeYes
SensorClean Sensor
Showroom Power ModeYes
StyleBuilt-In Top Control
Top Rack/3rd Rack3rd Rack + Caddy
Tub and Door LinerStainless Steel
Tub TypeTall Tub
Upper RackPremium Height Adjustable, Ball-Tip Tines, Smooth Glide Upper Rack
Wash Arms3 Wash Levels, Lower, Middle, Upper, Bottle Jets, Bottle Wash Jets, Deep Clean Silverware Jets
Wash System FeaturesVariable Speed Dual Pumps and Motors, Automatic Temperature Control, Drain Pump, Piranha™ Hard Food Disposer with removable filter, Automatic HotStart, Bottle Jets (4)
Wash System600 Series, 3-Level
Water Filtration System100% Filtration with Piranha Hard Food Disposer and Removable Filter
WiFi ConnectOptional (Requires part no. PBX23W00Y0)
Power / Ratings
Calrod Heater Watts800/500
Power ConnectionOptional cord kit (GPFCORD - WX09X70910, WX09X70911)
Volts/Hertz/Amps120V; 60Hz; 6.6A
Warranty
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

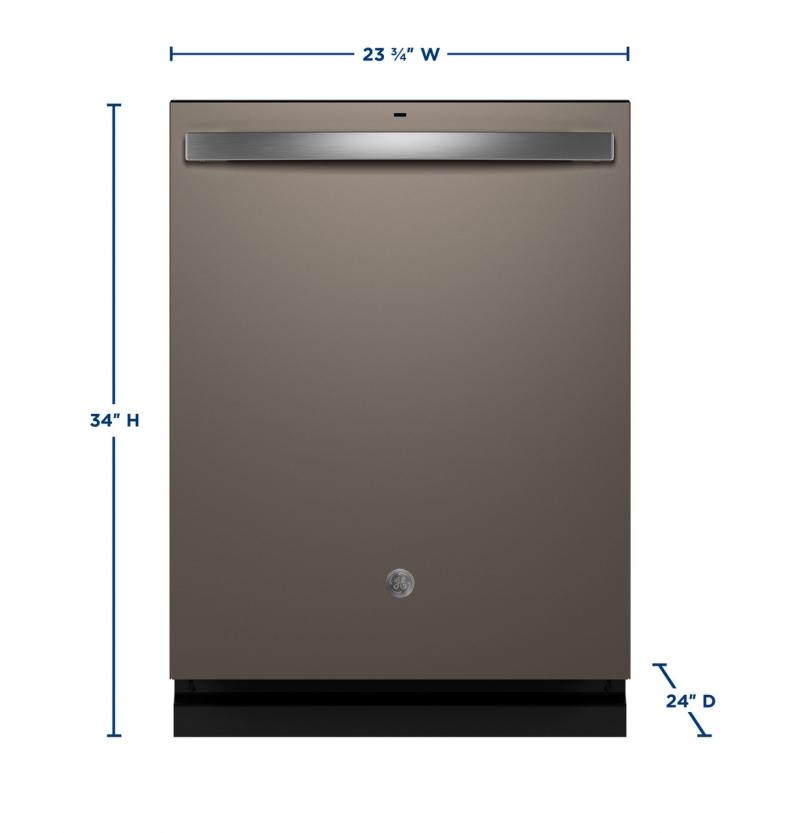

Weights & Dimensions
Approximate Shipping Weight112 lb
Cabinet Width24 in
Height w/ Legs Retracted - Minimum Height33.375 in
Height w/Legs Extended - Maximum Height34.625 in
Net Weight99 lb
Overall Depth24 in
Overall Depth with Handle25.60 in
Overall Height34 in
Overall Width23 3/4 in
Specification Dishwashers
Dishwasher Drying FeaturesHeated Dry - On/OffDry Boost™Dry Boost™Heated Dry - On/OffHeated Dry - On/Off
Dishwasher CyclesRinse1 Hour Wash1 Hour WashAuto SenseAuto SenseHeavy WashHeavy WashNormal WashNormal WashRinseRinse
ColourSlateSlate
Control TypeTopCapacitive TouchCapacitive TouchTopTop
Rack FeaturesBall Bearing GlidesUpper Rack - AdjustableUpper Rack - AdjustableLower Rack - Ball-Tip TinesLower Rack - Ball-Tip TinesUpper Rack - Ball-Tip TinesUpper Rack - Ball-Tip TinesBall Bearing GlidesBall Bearing Glides
FeaturesActive Flood ProtectActive Flood Protect
HandleTowel BarTowel Bar
Noise Levels45 dBA45 dBA
Number of Cycles55
Rack MaterialNylonNylon
Dishwasher OptionsWash ZonesRinse Aid with Indicator and AdjustmentRinse Aid with Indicator and AdjustmentLast Cycle MemoryLast Cycle MemoryChild LockChild Lock1-12 hr.1-12 hr.Dry Boost™ (High)Dry Boost™ (High)Dry Boost™ (Normal)Dry Boost™ (Normal)Sabbath ModeSabbath ModeStart/ResetStart/ResetSteam + SanitizeSteam + SanitizeTemp BoostTemp BoostWash ZonesWash Zones
End-of-Cycle SignalYes
Number of Place Settings16 Place Settings16 Place Settings
StyleBuilt-inBuilt-in
SensorClean SensorClean Sensor
Tub and Door LinerStainless SteelStainless Steel
Wash Arm - Lower LevelYes
Wash Arm - Mid-LevelYes
Wash Arm - Upper LevelYesYes
Wash System600 Series600 Series
Wifi ConnectYes
Cycle Progress Indicators3 LED3 LED
Type of TubTallTall
Sabbath ModeYes
Water Filtration SystemYesYes
Wash System FeaturesDrain PumpAutomatic HotStartAutomatic HotStartAutomatic Temperature ControlAutomatic Temperature ControlBottle Wash JetsBottle Wash JetsDrain PumpDrain Pump
