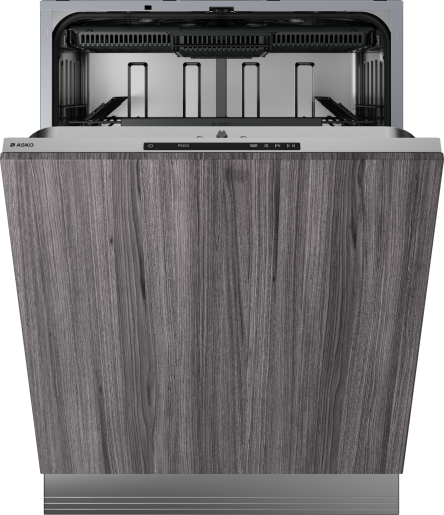

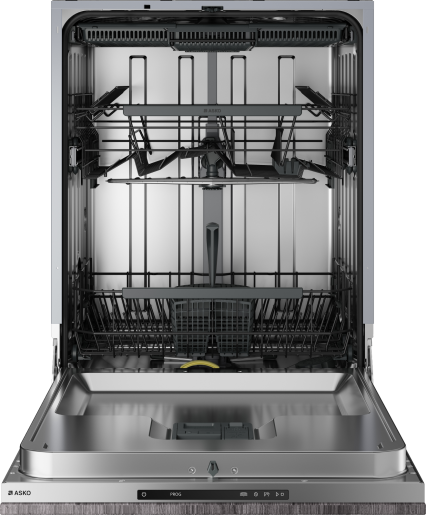

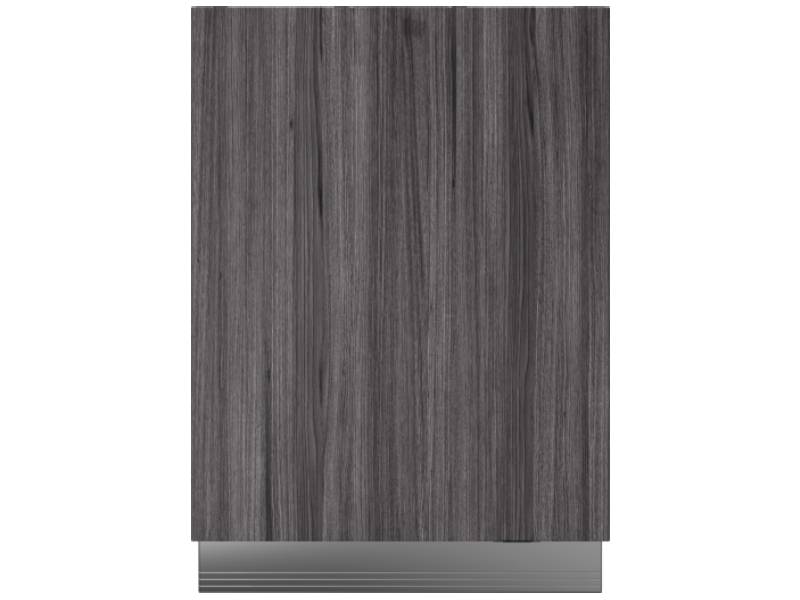

24" Asko Fully Integrated Panel-ready Built-in Dishwasher - DFI563XXL
Status light
A small light placed in the bottom right corner indicates the current status of a program with three colours: Blue tells you when you can still open the door to load more items, red tells you when it’s too late to do so and green tells you when the dishes are ready. The Status Light™ can be either face-on or as a spot on the floor.
Super Cleaning System™ (SCS™)
Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One – and we call it the Super Cleaning System – or our best invention.
Flexiracks™
ASKO Flexiracks™ from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.

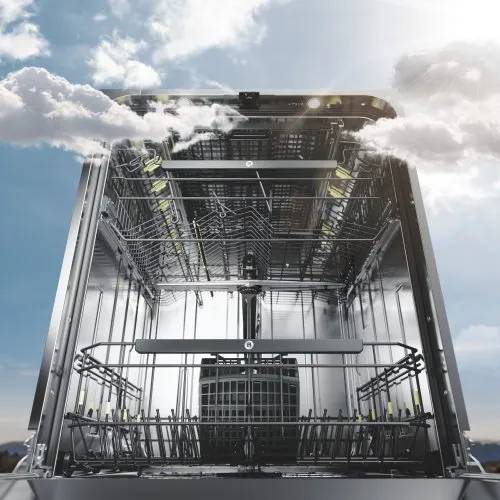

XXL dishwashers
Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.

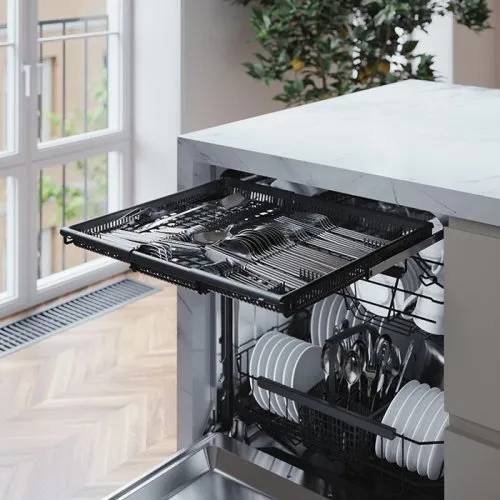

Top cutlery tray
The practical top cutlery tray is a perfect place for cutlery and knives. It consists of three parts that can be moved sideways. This allows you to adjust the layout and free up space for taller items in the basket below.

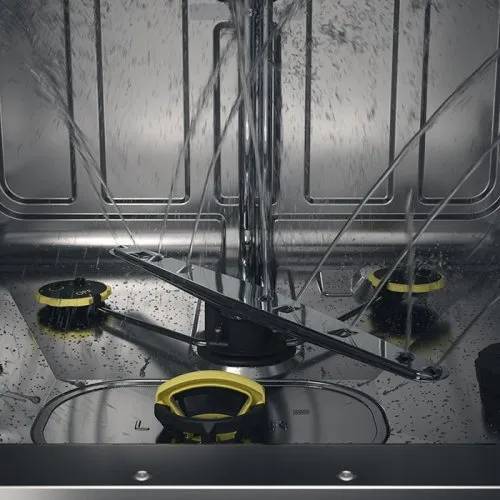

7 Spray™
ASKO’s spray system consists of up to 7 effective spray zones to ensure a totally clean load. In the lower rack there are two power zones to take care of the dirtiest parts.

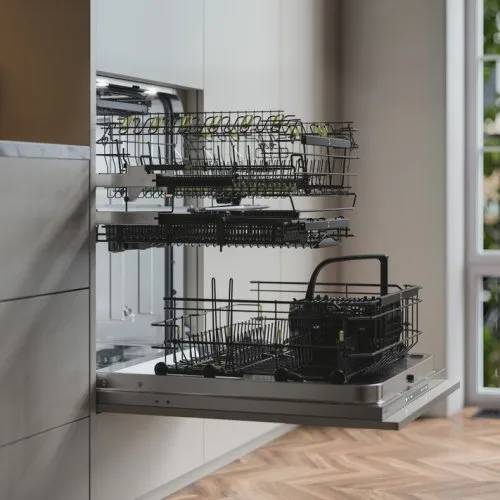

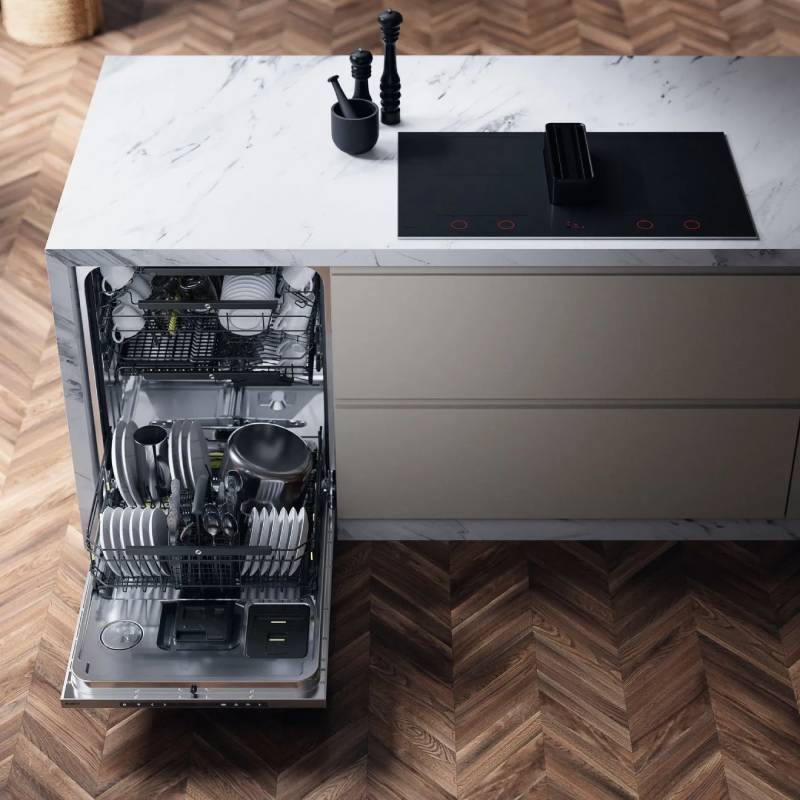

3 Level rack
ASKO’s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.

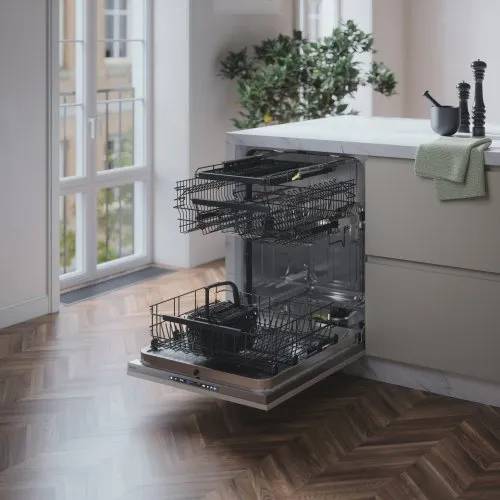

Telescopic rails
ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.
14 - Loading capacity
Inspired by everyday life. Our goal is that our products should make your everyday life simpler. That is why we have worked so hard through the years to develop the market’s largest and most flexible rack systems. This time, we have been especially careful to first find out what people really put in their dishwashers. We then translated our newly acquired knowledge to a range of unique, innovative and practical rack solutions.

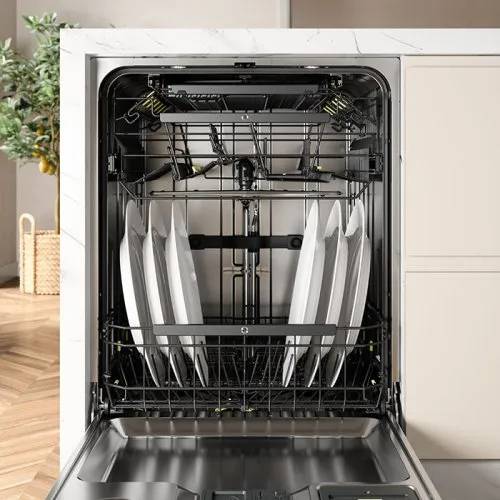

15-3/4" plates in lower rack
Our XXL dishwashers have room for a 40 cm big plate in the lower rack when the middle rack is removed and the upper rack in the upmost position.

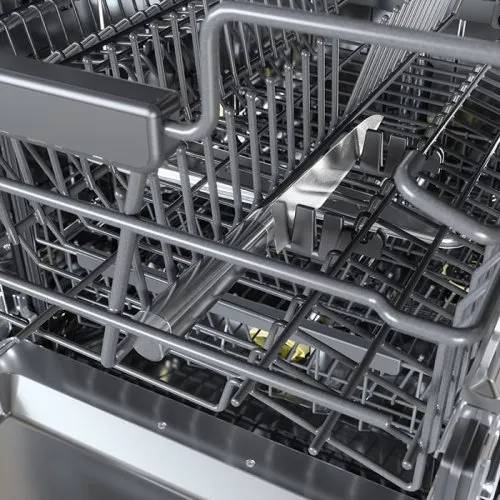

Knife holders
Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.

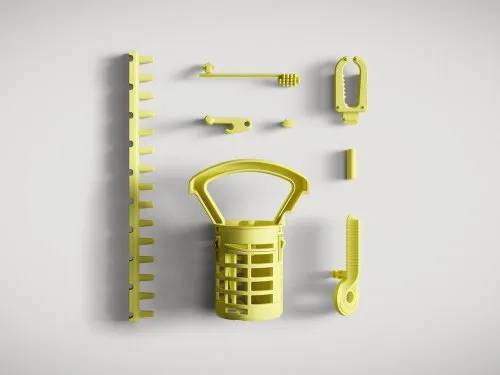

Focus points
Focus points - a hint of natureOpening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine’s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place – where it doesn’t compete for space or attention – instead, it makes the room.
| Construction and performance | |
|---|---|
| 8 Steel™ - Vital parts of the dishwasher made in stainless steel | No |
| No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
| Automatic water-softener for better washing performance | No |
| Number of spray arms | 3 pcs |
| Number of spray zones | 7 |
| Cleaning systems | Stainless steel spray arms <br> Aqua Level™ Sensor <br> No need to rinse the dishes thanks to Super Cleaning System™ <br> Sensi Clean™ Sensor - measures dirtiness level <br> 2 x WideClean |
| Use and flexibility | |
| Number of place settings | 14 pcs |
| Number of racks | 3 |
| Top tray | No logotype <br> Handle<br> With telescopic rails<br> Dividable and removable |
| Upper rack type | Core Premium |
| Upper basket system | No |
| Upper basket | Small distance between the basket threads - makes loading easy and prevents small items to fall through <br> Handle with plastic logotype<br> Foldable wine shelves to left<br> Foldable wine shelves to right<br> Fixed pin rows<br> Fixed glass support<br> Standard knife stand<br> Perfect ergonomy with easy sliding telescopic rails<br> |
| Middle basket | Without middle basket |
| Lower rack type | Core Premium |
| Lower rack | Cutlery basket <br> Foldable/divisible rear pin row <br> Handle with plastic logotype <br> Small distance between the basket threads - makes loading easy and prevents small items to fall through. |
| Automatic dosing system | No |
| Interior light | No |
| Interaction and control | |
| Wifi | No |
| Type of display | LCD display |
| Status Light™ - Visual indication of dishwashing progress | Yes, spot on floor |
| Remaining time indication | Yes |
| Wash end indication | Displayed with sound and light |
| Language settings | Ukrainian, Swedish, Serbian, Slovenian, Slovak, Russian, Portuguese, Polish, Norwegian, Dutch, Latvian, Lithuanian, Japanese, Italian, Croatian, French, Finnish, Estonian, Spanish, English, German, Danish, Czech |
| Functions, programs and modes | |
| Programs | Self cleaning <br> Rinse and hold programme<br> Time program<br> Standard<br> Intensive program<br> Quick wash<br> Auto wash<br> Sanitize<br> |
| Delayed start | Possible to delay up to 24 hours |
| Options and modes | Night mode - Lower noise level. The program time is extended. <br> Speed mode - The program time is shortened. More energy is used.<br> Time set<br> Super Rinse™ - Two extra rinses<br> Enable/disable automatic door opening |
| Design and integration | |
| From the front adjustable door spring | Yes |
| From front adjustable rear foot | Yes |
| Installation | Velcro strips for easy mounting and adjustment of the separate custom door <br> Multi fit outlet hose Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Steam protection strip |
| Sliding door | No |
| Possible to install elevated | Yes |
| Custom door size | Custom door size 700-800 |
| Min. niche width | 24 '' |
| Min. niche height | 33 7/8 '' |
| Depth (incl. wall spacing) | 21 7/8 '' |
| Max Height adjustment | 1 15/16 '' |
| Adjustable kick plate | 50-100/90-120 |
| Safety and maintenance | |
| Aqua Safe™ | Anti Block™ - Self cleaning drain pump <br> Light and sound alarm <br> Maximum time for water intake <br> Extra durable PEX inlet hose <br> Stand-by water protecion - Leakage detection when machine is off <br> Aqua Level™ Sensor - Ensures an optimized water level <br> Aqua Detect™ - Instant recognition of any leakage in the motor compartment <br> Detection of water leakage on the bottom plate <br> Waterproof bottom plate <br> Sealing points outside container |
| Aqua Safe™ system | No |
| Child safety | Kid Safe™ - Lockable controls |
| Indication of low level of rinse-aid | Notification in display |
| Technical data | |
| Water connection | Hot or cold |
| Max. temperature of inflow water | 140 °F |
| Noise level (max) | 42 dB(A) |
| Reference programme | 1 |
| Duration of standard programme | 120 min |
| Estimated yearly energy consumption | 205 kWh |
| Energy consumption - normal program | 0.9 kWh |
| Estimated annual water consumption | 647.5 gal |
| Water consumption | 3 gal |
| Power consumption in standby mode | 1.7 W |
| Plug type | USA |
| Connected load | 1300 W |
| Voltage (V) | 120 V |
| Number of phases | 1 |
| Fuse | 15 A |
| Frequency | 60 Hz |
| Required inlet water pressure psi | 0,3-1 |
| Net weight | 71.7 lb |
