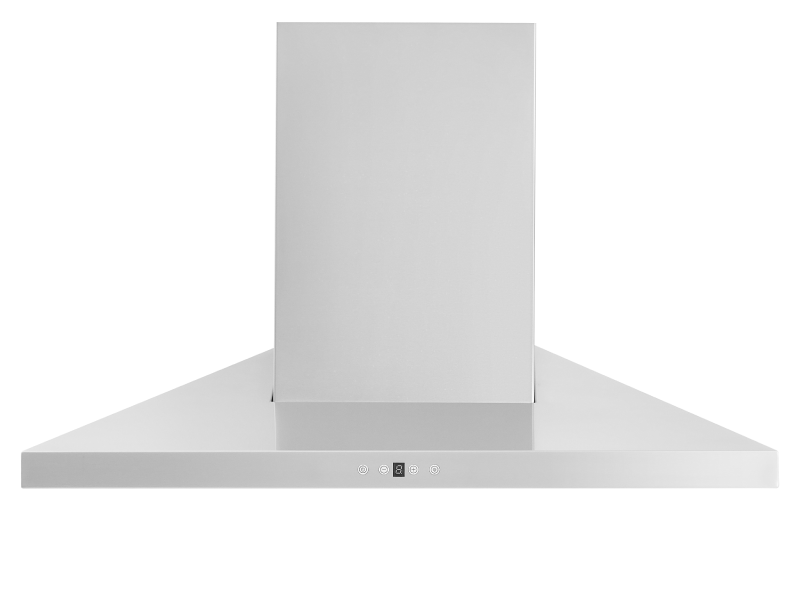

36" Aviva Professional Design 6 Speed Wall Mount Hood - AVN-368CS3
Literature
- 860 CFM, 6-Speed
- 0.7 sones (min.) to 6.5 sones (max.)
- Ducting: 3 1/4'' x 10'' (Rear)
- 6'' round duct transition included
- For ceiling heights up to 9'0''
- 2 baffle filters (stainless steel)
- LED lighting (3W)
- 1-year Warranty | parts and labour
| Specification | |
|---|---|
| Dimensions | 35 1/2'' (W) x 19 3/4'' (D) x 7 1/2'' (H) |
| Exterior Appearence | |
| Stainless steel grade | 201 |
| Specifications | |
| Control Type | Soft touch with LED display |
| Lighting | 2 bulbs, 3W LED (bulbs included) |
| Blower Type | 860 CFM, 6-Speed |
| Blower performance | Speed 1, 0.7 sones, Speed 6, 6.5 sones |
| Filter type | 2 Stainless steel baffle filters (included) |
| Duct transition | 6'' Round (Top) 3 1/4'' x 10'' rectangular (Rear) 3 1/4'' x 10'' rectangular (Top) |
| Ducting | Ducted |
| Electrical Requirements | |
| Electrical requirements | 120V / 60Hz / 2.7 Amps |
| Accessories (optionnal) | |
| Optional duct covers | AD-884S (884mm, AVN-AVH compatible) |
| Warranty | |
| 1-year Warranty | Parts and labour |
